EPF036

Part Number:EPF036

Overview

EPF036 is a low cost high performance Micro Controller with 128KB embedded Flash, USB 1.1 Host/Device and USB 2.0 switch Function. The chip integrates 80515 core, 128KB embedded Flash, 256 + 4KB RAM, USB 1.1 Host/Device, Timer, Watchdog Timer, Serial Port, 9-bit PWM, SPI, SMBUS, Fan Tachometers, PS2, LPC, 10-bit ADC, Keyboard Interrupt and GPIO in a single chip.

Features

•On-chip 80515 core with 128K bytes Flash, 256 bytes Direct RAM and 4K bytes on-chip auxiliary RAM
•Fast CPU rate (24Mhz). 41.6 ns for shortest instruction
•Programmable CPU clocks from 24 Mhz to 500 Khz
•Programmable crystal start-up cycles from 0 to 4096 cycles
•Supports Idle mode and Stop mode for power saving.
•Supports crystal/CPU wake-up from Stop mode
•Supports In Circuit Flash programming (ICP)
•Supports 16 external interrupts
•Supports keyboard interrupt on 2 GPIO pins.
•On-chip USB Host/Device 1.1 which supports end-pint 0, 1, 2 and 64-byte bulk transfer
•On-chip 4 Timers
•On-chip 15-bit programmable Watchdog Timer
•On-chip Serial Port which supports Synchronous mode and 8/9-bit UART modes
•On-chip Serial Peripheral Interface (SPI) supporting both Master and Slave modes
•On-chip 10 channels of 9-bit PWM with programmable repetition rate
•On-chip 4 channels of Fan Tachometers
•On-chip 8 channels of 10-bit ADC
•On-chip 4 SMBUS ports (2 masters and 2 slaves) with configurable pin outs
•On-chip Low Pin Count (LPC) module for host interface
•Support maximum of 51 General Purpose I/O pins. Most of the I/O ports are 5V tolerant.
•SPI, PS2, LPC, ADC and USB pins can be used as GPO or GPIO if the associated function is not enabled
•On-chip Low Voltage Inhibit (LVI) circuit which provides reliable power up reset and prevent accidental data loss in Flash
•64-pin LQFP package (Pb-Free)

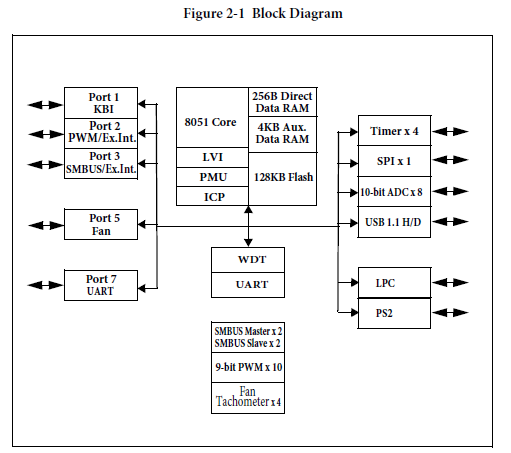

Block Diagram
