EP369S

Part Number:EP369S

Overview

EP369S is a high performance Display Port 1.2 (DP 1.2) receiver with HDCP and 4 ports LVDS output. The chip is compliant with DP 1.2 specification and HDCP 1.4 specification. The chip supports display resolution up to 600 M pixels/second. The on-chip LVDS transmitter is capable of transmitting data at 165 M pixels/second each port. The LVDS outputs can be configured as 2-port outputs or 4-port output. Data output sequence can also be configured as Sequential mode or Left-Right mode. The chip is also integrated with an eFlash MCU. It manages HDCP automatically without the need for user to develop firmware. The MCU make user’s applications very easy.

Features

‧ High Performance Display Port 1.2 Receiver capable of supporting 540 Mhz Link Rate and 600 M Hz Pixel Rate.
‧ 4 Ports of LVDS Transmitter capable of transmitting data at 165 M pixels/second each port
‧ Display Port specification 1.2 compliant
‧ HDCP specification 1.4 compliant
‧ On-chip eFlash MCU with integrated HDCP keys
‧ Programmable 2-Port or 4-Port LVDS outputs
‧ Programmable LVDS Data Sequence in Sequential mode or Left-Right mode
‧ Programmable LVDS Port Swapping for easy PCB layout
‧ Programmable LVDS Data Width in 6-bit, 8-bit or 10-bit
‧ Programmable LVDS Data Mapping
‧ Low power consumption in Power Down mode
‧ 128-pin LQFP

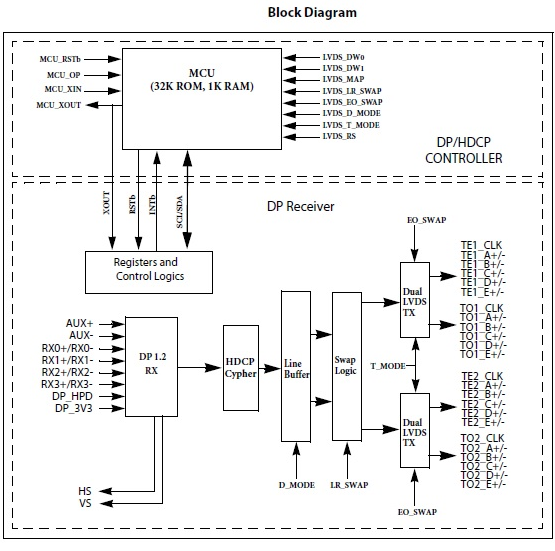

Block Diagram
