EP9431

Part Number:EP9431

Overview

EP9431 is a 4 inputs HDMI 1.3b switch with integrated Equalizer and DDC/HPLG switches. The chip provides 4 HDMI receiver inputs and one HDMI transmitter output. The chip uses Re-Sample and Re-Drive architecture which re-samples data at the receiver side and re-drive data at the transmitter side. This architecture will not pass through noise from inputs to output and hence provides reliable transmission. The chip supports TMDS clock from 25 Mhz to 225 Mhz (12-bit color 1080p).

Features

‧ Compliant with HDMI 1.3b specification
‧ Supports 12-bit Deep Color 1080p
‧ Support 4 HDMI inputs with 1 HDMI output
‧ Re-Sample architecture to filter input noise and recover the input data
‧ Re-Drive architecture to regenerate clean TMDS signal
‧ On-chip Equalizer which allows data transmission on long cables
‧ On-chip DDC switches
‧ TMDS clock range: 25MHz – 225MHz
‧ Single 3.3V power
‧ Pin Compatible to EP9421
‧ 128-pin LQFP package (Pb-Free)

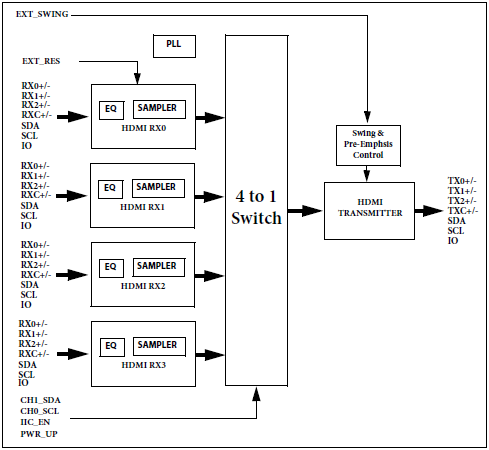

Block Diagram
