EP958B

Part Number:EP958B

Overview

EP958B is a Low Power HDMI (High Definition Multimedia Interface) to MHL (Mobile High-definition Link) transmitter. The chip is compliant with HDMI Rev 1.4a and MHL Rev 1.1 specifications. The chip supports HDMI input and MHL output up to 75 Mhz pixel rate including 720p/1080i 60 Hz and 1080p 30/24 Hz. The chip also integrated MHL Multiplexer on chip to save system cost.

Features

•HDMI Specification 1.4a Compliant
•MHL Specification 1.1 Compliant
•On-chip EDID RAM for HDMI input port
•Support RGB/YCC444 8-bit video upto 75 Mhz pixel rate including 720p/1080i 60 Hz and 1080p 30/24 Hz
•DDC port in up-stream HDMI source is not required to support IIC clock stretching
•On-chip MHL MUX
•IIC Slave Programming Interface
•Supports Hot Plug Detection and Receiver Connection Detection
•Supports Power Down Mode
•3.3V and 1.8V power required
•49-ball 3.5 mm x 3.5 mm BGA package

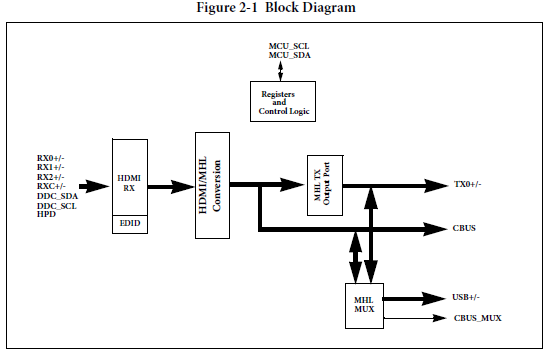

Block Diagram
