EP9851

Part Number:EP9851

Overview

EP9851 is a low cost high performance single port HDMI receiver which is compliant with HDMI 1.2a and supports Analogue Video output up to UXGA and 1080p. The chip integrates Equalizer, HDMI core and HDCP engine in a single chip.

Features

‧ On-chip HDMI receiver with Equalizer
‧ On-chip HDMI Receiver core which is compliant with HDMI 1.2a specification
‧ On-chip HDCP Engine which supports Repeater and is compliant with HDCP 1.2 specification
‧ Supports pixel clock rate from 25 Mhz to 165 Mhz
‧ Supports Analogue Video output up to UXGA and 1080p with an on-chip 10-bit DAC
‧ On-chip Audio Decoder which support 2-channel IIS and S/PDIF audio outputs
‧ Support audio soft mute
‧ Support SPDIF Channel Status extraction and overwrite
‧ On-chip YCC422 to YCC444 conversion
‧ On-chip YCC to RGB and RGB to YCC conversion in ITU-R BT.601 and 709 color space
‧ Support Separate Sync output and Sync On Green
‧ Register-programmable via slave IIC interface
‧ Flexible interrupt registers with interrupt pin
‧ Link On and Valid DE Detection
‧ Low stand-by current at power down mode
‧ 64-pin LQFP package

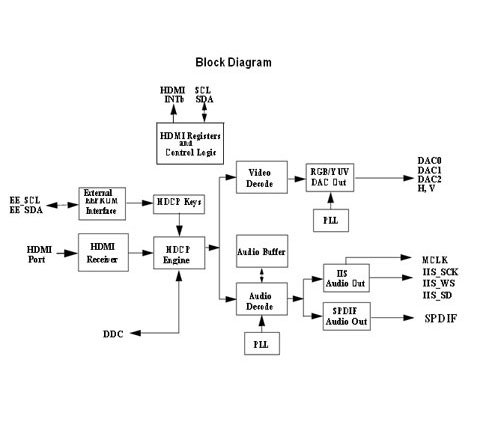

Block Diagram
