EP9134

Part Number:EP9134

Overview

The EP9134 is a 4-Port DVI/HDMI splitter with integrated HDCP decryption/encryption engines and is compliant with HDMI Rev 1.3a and HDCP Rev 1.2 specifications. The EP9134 receives DVI/HDMI inputs, process HDCP decryption and encryption and transmits the data to 4 DVI/HDMI ports. The chip uses an external EE to store the encrypted HDCP receiver/transmitter keys.

Features

•DVI Specification 1.0 Compliant
•Compliant with HDMI 1.3a specification and HDMI 1.3c Compliance Test Specification (CTS)
•Integrated HDCP decryption/encryption engines which are compliant with HDCP Rev 1.2 specification
•Encrypted HDCP keys store in external serial EE
•Wide Frequency Range: 25MHz – 225MHz
•Support 12-bit Deep Color up to 1080p
•Supports 1 DVI/HDMI input port and 4 DVI/HDMI output ports
•Supports conversion of HDMI signaling to DVI signaling
•Supports HDCP Repeater
•Cascadable to make more than 4 output ports
•128-Pin E-PAD LQFP (Pb-Free)

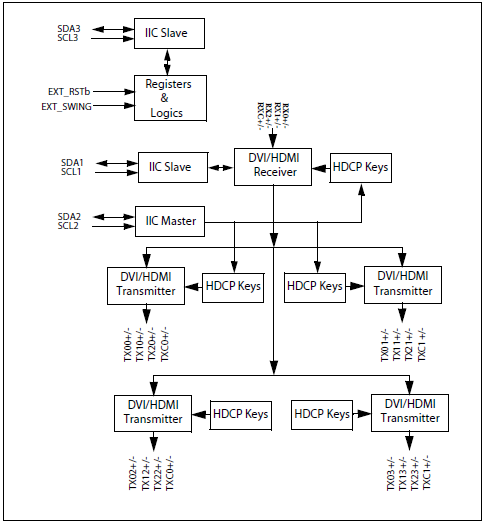

Block Diagram
