EP9142(U)

Part Number:EP9142(U)

Overview

EP9142(U) is a 2-Port DVI/HDMI splitter with integrated HDCP decryption/encryption engines and is compliant with HDMI Rev 1.4 and HDCP Rev 1.3 specifications. EP9142(U) receives DVI/HDMI inputs, process HDCP decryption and encryption and transmits the data to 2 DVI/HDMI ports.


Features

•DVI Specification 1.0 Compliant
•HDMI Specification 1.4a Compliant
•Integrated HDCP decryption/encryption engines which are compliant with HDCP Rev 1.3 specification
•Wide Frequency Range: 25MHz – 340MHz
•Supports 12-bit Deep Full HD, Full 3D and 4K2K video.
•Supports Standard Audio, DSD Audio and HD (HBR) Audio
•Supports 1 DVI/HDMI input port and 2 DVI/HDMI output ports
•Supports conversion of HDMI signaling to DVI signaling
•Supports HDCP Repeater
•Cascadable to make more than 4 output ports
•64-Pin TQFP (Pb-Free; E-PAD)

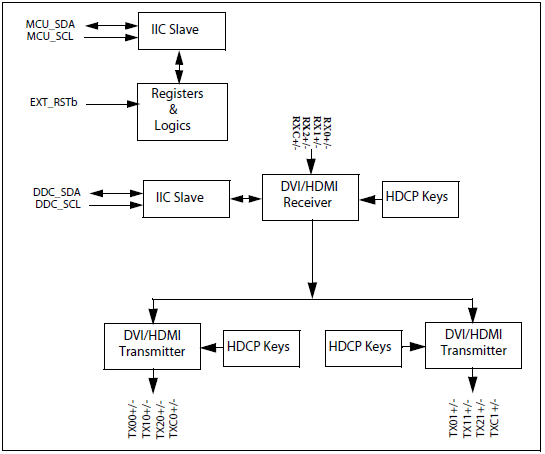

Block Diagram
