EP9432

Part Number:EP9432

Overview

EP9432 is an HDMI 1.3 4-IN 2-OUT Repeater with Audio Output which is suitable for Full Matrix applications. The chip supports 4 HDMI input ports (Port 0, Port 1, Port 2 and Port 3), 2 HDMI output ports (Port A and Port B) and Audio Outputs in IIS and SPDIF. The 2 HDMI output ports can be from the same or different sources. The audio output and HDMI output can be selected from the same or different sources. Also, the chip supports 4 ports of on-chip EDID RAM. This will save system cost quite a bit. The chip is compliant with HDMI 1.3a and supports SD/HD Audio and Video in 12-bit Deep Color up to 1080p (225 Mhz TMDS clock).

Features

•On-chip 4-IN 2-OUT HDMI Repeater with Equalizer
•Support wide Frequency Range: 25MHz – 225MHz TMDS clock
•On-chip HDMI Receiver and Transmitter core which are compliant with HDMI 1.3a specification and HDMI 1.3c Compliance Test Specification (CTS)
•On-chip HDCP Engine which supports Repeater and is compliant with HDCP 1.4 specification
•Supports 4 HDMI input ports (Port 0/1/2/3) with on-chip EDID RAM for each port.
•Supports 2 HDMI output port (Port A/B)
•Audio Outputs and HDMI output can be from the same or different sources
•The 2 HDMI output ports can be from the same or different sources
•On-chip Audio Decoder which support 8-channel IIS/DSD and SPDIF audio outputs
•Support Standard Audio, DSD Audio and HD (HBR) Audio
•Support audio soft mute
•Support SPDIF Channel Status extraction
•Register-programmable via slave IIC interface
•Flexible interrupt registers with interrupt pin
•Link On and Valid DE Detection
•Controllable tri-state for Audio output pins
•Low stand-by current (< 2mA) at power down mode
•128-pin LQFP package

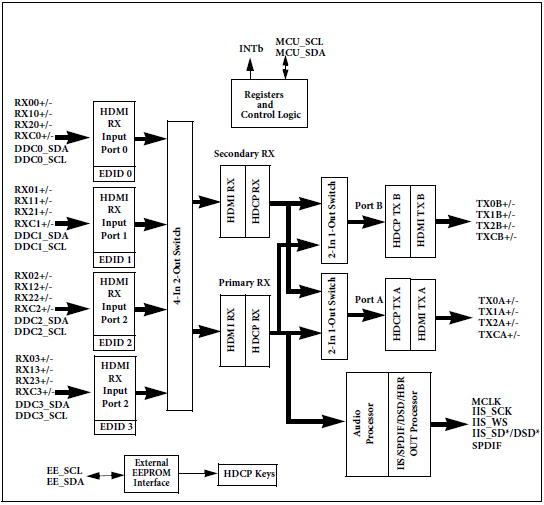

Block Diagram
