EP94A2E

Part Number:EP94A2E

Overview

EP94A2E is an HDMI 1.3 4-IN 1-OUT Repeater with Audio Input/Output which is suitable for Audio Amplifier applications. The chip supports 4 HDMI input ports (Port 0, Port 1, Port 2 and Port 3), 1 HDMI output port and Audio Outputs in IIS and SPDIF. The audio output and HDMI output can be selected from the same or different sources. The audio for the HDMI output can be chosen from a regenerated LPCM audio source (input from IIS_*_IN pins) or the original audio from the selected HDMI input port. The chip also supports 4 ports of on-chip EDID RAM. This will save system cost quite a bit. The chip is compliant with HDMI 1.3a and supports SD/HD Audio and Video in 12-bit Deep Color up to 1080p (225 Mhz TMDS clock).

Features

•On-chip 4-IN 1-OUT HDMI Repeater with Equalizer
•Support wide Frequency Range: 25MHz – 225MHz TMDS clock
•On-chip HDMI Receiver and Transmitter core which are compliant with HDMI 1.3a specification and HDMI 1.3c Compliance Test Specification (CTS)
•Support 3D video format in HDMI 1.4
•On-chip HDCP Engine which supports Repeater and is compliant with HDCP 2.0 specification
•On-chip HDCP Keys.
•Supports 4 HDMI input ports (Port 0/1/2/3) with on-chip EDID RAM for each port.
•Supports 1 HDMI output port
•Audio Outputs and HDMI output can be from the same or different sources
•Audio for HDMI output can be from a regenerated LPCM audio source or the original audio from the selected HDMI input port.
•On-chip Audio Decoder which support 8-channel IIS/DSD and SPDIF audio outputs
•Support Standard Audio, DSD Audio and HD (HBR) Audio
•Support audio soft mute
•Support SPDIF Channel Status extraction
•Register-programmable via slave IIC interface
•Flexible interrupt registers with interrupt pin
•Link On and Valid DE Detection
•Controllable tri-state for Audio output pins
•Low stand-by current (< 3mA) at power down mode •128-pin LQFP package

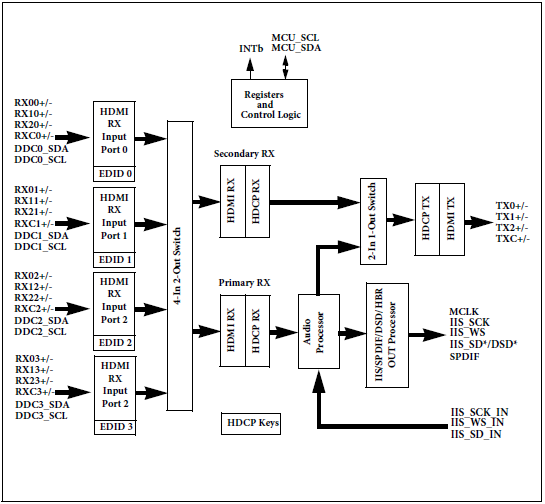

Block Diagram
